N+1 Optical Cross Protection Equipment

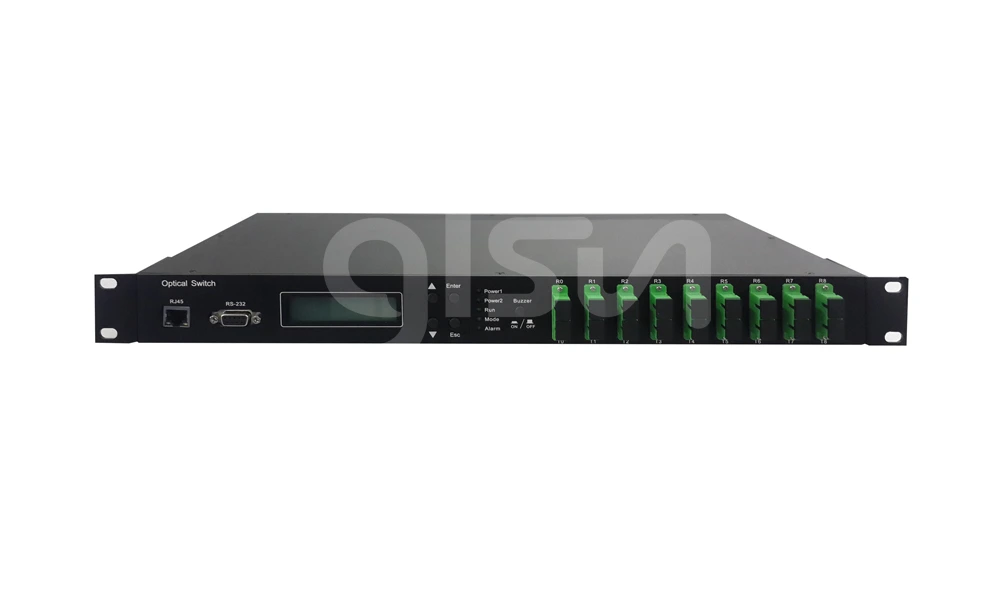

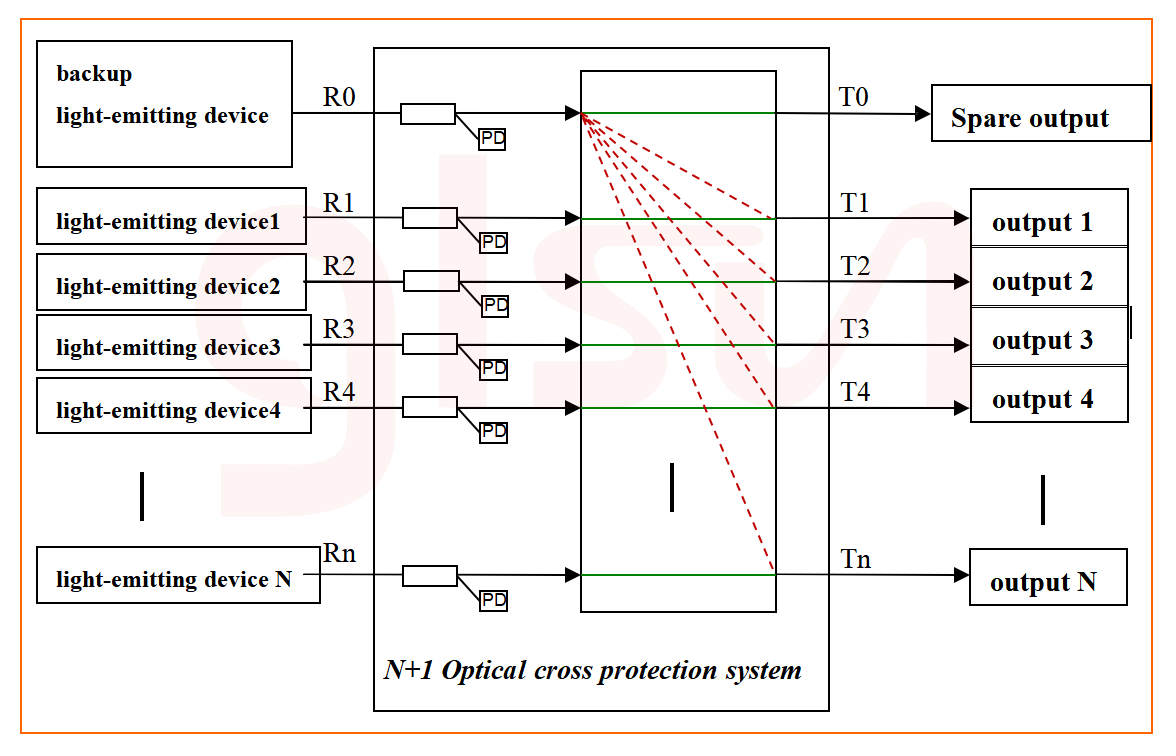

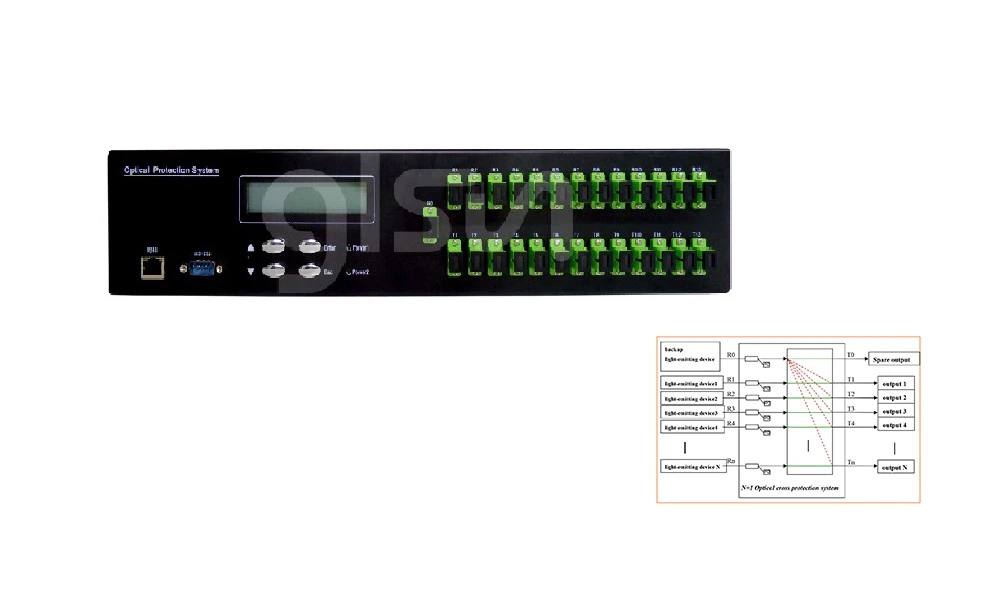

N+1 Optical Cross Protection is a kind of matrix switch protection system used a backup light-emitting device to protect more than one main light-emitting device. In optical fiber transmission system, if there are 8 light-emitting devices and one of them is backup, when any of light-emitting devices breaks down but the backup works normally, the optical cross protection equipment will switch to the backup within milliseconds to keep the system working.

Parrameters	Unit	N+1 Optical Cross Protection
Chassis Type	mm	1U standard 19”rack 482.6×250×44 （W×D×H)
		2U standard 19 "rack 482.6×303×89（W×D×H)
Channel No.		4+1	8+1	16+1
Test Wavelength	nm	1550
Insertion Loss	dB	≤ 1.5	≤ 1.8	≤ 2.0
Return Loss	dB	≥ 50
Crosstalk	dB	≥ 55
PDL	dB	≤0.1
WDL	dB	≤0.25
Power Range	dBm	-40 ~ +25
Switch Type	dB	Latching
Switching Time	ms	＜ 30
Fiber Type		SM（9/125um）
Connector		SC / APC
Monitoring Port		RJ45、RS-232
Working Power Supply（Plug-type）	V	AC: 100 ～ 240（50/60Hz） or DC: 36 ～ 72
Power Consumption	W	＜ 10
Operating Temperature	℃	-5 ～ 55
Storage Temperature	℃	-40 ～ 85

Note：Customization is available.

N: Channel No.	A: Fiber Type	B: Operating Wavelength	C: Fiber Type	D: Connector	E: Chassis Size
4+1: 4+1 guard 8+1: 8+1 guard 16+1: 16+1 guard X: Others	SM:9/125 Single mode X: Others	1310: 1310nm 1550: 1550nm 13/15:1310/1550nm X: Others	AC: 100~240V DC: 36~72V AC/DC:100~240V&36~72V AC/AC:dual 100~240V DC/DC:dual 36~72V X: Others	SA:SC/APC X: Others	1U:482.6×250×44mm 2U:482.6×303×89mm X: Others
