UCDWDM-Ultra Compact Dense Wavelength Division Multiplexer

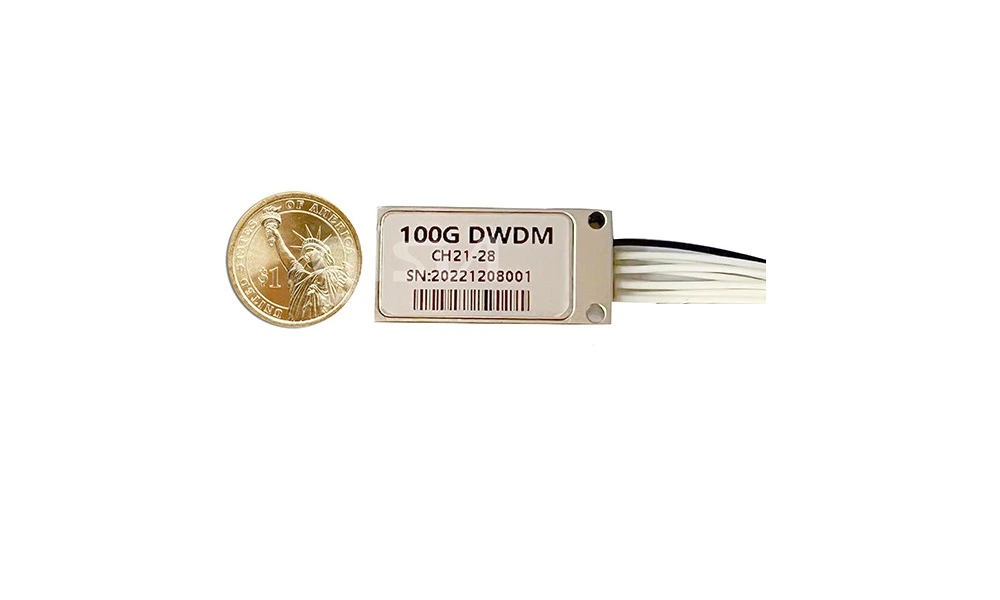

Ultra compact 100GHz/200GHz dense wavelength division multiplexers(DWDM) are integrated micro-optic modules using multi-layers structure optical platform based on thin film filter (TTF) technology and free-space technology with ultra-low insertion that could be used for NG-PON2 application.

Parrameters		Unit	Values
Dimension		mm	29x14.5x6.5 （W×D×H)
Channel Number			8
Center Wavelength		nm	C-band, ITU Grid
Filter Type			100GHz
Channel Passband（0.5dB）		nm	>0.32
Insertion Loss		dB	≤2.0
Isolation	Adjacent	dB	≥30
	Non-adjacent	dB	≥40
Polarization Dependent Loss		dB	≤0.3
Min Return Loss		dB	≥50
Optical Power (CW)		mW	≤500
Fiber Length		M	≥1.0
Fiber Type			G657 A2 fiber, bare fiber or 900um jacket
Connector			None
Operating Temperature		℃	-5~+55
Storage Temperature		℃	-40~+85

A: Channel Spacing	B: ITU Grid	C: Fiber Jacket	D: Fiber Length	E: Connector Type
100: 100 GHz 200: 200 GHz	21: C21-28 23: C23-30 X: Others	25: 250um Bare Fiber 90: 900um Loose Tube X: Others	07: 0.7m 10: 1.0m X: Others	OO: None FU: FC/UPC FA: FC/APC SU: SC/UPC SA: SC/APC X: Others
